The Mantus Anchor

The Mantus Anchor

DIGS LIKE NO OTHER The Mantus Anchor is designed to penetrate dense grassy bottoms and set with unparalleled holding power. When tested, our anchors set faster and deeper than any other tested anchor, including Rocna, Manson Supreme, Bulwagga, Fortress, Bruce, CQR and Danforth anchors.

EASY TO STORE The Mantus anchor lineup simply has the best boat anchors available. Whether you are a long range cruiser, racing or going out for a day sail. The Mantus breaks down for easy storage, so you can store one or two as spares without taking up much needed boat space.

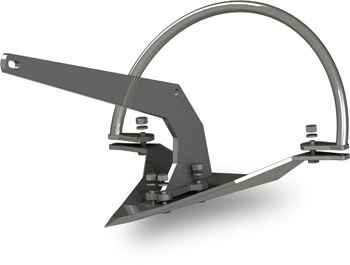

BUILT STRONG

  • Formed out of high quality steel plate. Contains no cast parts.
  • Shank and shank boot are welded from top and bottom.
  • Shank and roll bar are bolted to the fluke.
  • ASTM certified steel bolts are oversized with a large margin to ensure safety.
  • Although the shank is attached to the fluke with 4 bolts, a single bolt has sufficient strength to handle the maximum expected load on the anchor. Bolt Details.
  • Stainless Steel anchors feature a 2205 Duplex shank and 316L stainless steel fluke. The surface is hardened by shot-peening and then electro-polished to provide maximum corrosion resistance.
  • In the carbon steel version every part of the anchor system is hot-dipped galvanized for corrosion protection. (All shanks are HT ASTM 514 Steel and flukes are mild steel A36 equivalent)
  • Sharp-headed nose is precision machined to achieve the perfect chisel shape to achieve maximum penetrating power.

LIFE TIME WARRANTY Mantus Anchors offers a lifetime warranty on its anchors *see Warranty section for details.

Mantus Anchor Details

Anchor Sizing

DIMENSIONS AND SIZING

DIMENSIONS

dimensions

79.5 kgs947120110301469517610

Mantus Anchor Dimensions (inches)
SIZE A B C D E F
8 lbs 12.0 15.2 13.0 18.6 6.6 7.7
13 lbs 14.6 18.5 15.9 22.7 8.0 9.4
25 lbs 17.4 22.1 19 27.1 9.5 11.2
35 lbs 19.4 24.6 21.1 30.1 10.6 12.5
45 lbs 21.8 27.6 23.7 33.8 11.9 14.0
55 lbs 23.3 29.6 25.4 36.2 12.7 15.0
65 lbs 24.8 31.5 27.0 38.6 13.6 16.0
85 lbs 26.4 33.4 28.7 40.9 14.4 17.0
105 lbs 28.6 36.2 31.1 44.3 15.6 18.4
125 lbs 30.7 39.0 33.4 47.7 16.8 19.8
155 lbs 34.9 44.2 37.90 54.1 19.1 22.5
175 lbs 37.3 47.3 40.5 54.1 20.4 24.0
Mantus Anchor dimensions (mm)
SIZE A B C D E F
3.6 kgs 305 386 331 472 166 196
5.9 kgs 371 470 403 576 203 239
11.4 kgs 443 562 482 687 242 285
15.9 kgs 493 625 536 765 269 318
20.5 kgs 554 702 602 859 303 357
25 kgs 592 751 644 919 324 382
29.5 kgs 631 800 686 979 345 407
38.6 kgs 670 850 729 1039 366 432
47.7 kgs 725 920 789 1125 396 467
56.8 kgs 781 990 849 1211 427 503
70.5 kgs 886 1123 963 1374 484 571

Metric Sizing Guide (click to enlarge)

anchor-sizing-guide-metric

Imperial Sizing Guide (click to enlarge)

anchor-sizing-guide-imperial

When making sizing recommendations for a working anchor we are generally referring to the needs of a cruising boat spending most of its time on anchor, in doing so we try to envelope high sustained winds (40 kts) and assume poor holding conditions (low viscosity bottoms). Some may think these recommendations to be too conservative especially when compared to sizing tables from other manufacturers. Companies often make claims of superior anchor efficiency, stating that their small anchor X will outperform a much heavier anchor from their competitors and often use sizing charts as a marketing tool to that end, recommending anchors and anchor systems that are dangerously undersized for their intended use. Comparing surface area can be a good judge for potential holding capability. Our anchor sizing recommendations are presented in the table below and we divided in three categories: Lunch Anchor category is recommended for lighter use, expected winds under 25 knots, working anchor for winds under 40 knots and finally, storm anchor recommendations are intended for winds up to 60 knots. These recommendations are made assuming the worse case scenario, a poor holding bottom and thus may seem conservative but we believe are accurate.



ANCHOR SIZING GUIDE

Use the following guide to determine what size of anchor to use:

When making sizing recommendations for a working anchor we are generally referring to the needs of a cruising boat spending most of its time on anchor, in doing so we try to envelope high sustained winds (40 kts) and assume poor holding conditions (low viscosity bottoms). Some may think these recommendations to be too conservative especially when compared to sizing tables from other manufacturers. Companies often make claims of superior anchor efficiency, stating that their small anchor X will outperform a much heavier anchor from their competitors and often use sizing charts as a marketing tool to that end, recommending anchors and anchor systems that are dangerously undersized for their intended use. Comparing surface area can be a good judge for potential holding capability. Our anchor sizing recommendations are presented in the table below and we divided in three categories: Lunch Anchor category is recommended for lighter use, expected winds under 25 knots, working anchor for winds under 40 knots and finally, storm anchor recommendations are intended for winds up to 60 knots. These recommendations are made assuming the worse case scenario, a poor holding bottom and thus may seem conservative but we believe are accurate.

OUR WARRANTY


Mantus anchors are covered by a LIFETIME warranty. If at anytime you are dissatisfied with our product please contact us for a replacement or refund. If an anchor becomes damaged we will ship a replacement part – shank, fluke or roll-bar. (Only exception is the galvanized coating on the anchors, it carries a 3 year warranty)

CONSTRUCTION GUIDE

Bolts, Washers and Nuts are provided with every Mantus Anchor. In the event of replacing a lost fastener, please make sure to always use proper size. Always use locking washers, or nylon lock nuts, and tighten the nut securely.

Click here to download a printable pdf of the assembly instructions.

Anchor Size
Bolt sizes
Number of Bolts
Mantus 8 lbs 1/4 6 bolts, nuts, lock washers
Mantus 13 lbs 3/8 6 bolts, nuts, lock washers
Mantus 25lbs 3/8 6 bolts, nuts, lock washers
Mantus 35 lbs 1/2 6 bolts, nuts, lock washers
Mantus 45 lbs 1/2 6 bolts, nuts, lock washers
Mantus 55 lbs 5/8 6 bolts, nuts, lock washers
Mantus 65 lbs 5/8 6 bolts, nuts, lock washers
Mantus 85 lbs 5/8 6 bolts, nuts, lock washers
Mantus 105 lbs 3/4 6 bolts, nuts, lock washers
Mantus 125 lbs 3/4 6 bolts, nuts, lock washers
Mantus 175 lbs 3/4 6 bolts, nuts, lock washers

RETURN POLICY

Mantus Anchors. The best anchor in the world. Period.

That is a pretty bold statement to make. We have tested Mantus against every other popular marine anchor on the market, and this is the conclusion we have arrived at. But don\’t take our word for it. Order a Mantus today and try for yourself. We offer a lifetime warranty. That\’s right. LIFETIME. Try our anchor or any of our products and if you aren\’t completely satisfied, simply contact us for a full refund! If at anytime the anchor becomes damaged, simply contact us and we will ship a replacement part.
